Low Latency COFDM Video Transmitter Highly Integrated Modular Design 4MHZ

Name: Low Latency COFDM Video Transmitter Highly Integrated Modular Design 4MHZ
Brand: Huanuo
Price: 1 USD

Brand Name : Huanuo

Model Number : HN-510

Certification : CE/FCC/ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 500 pieces per month

Delivery Time : 2~3 working days

Packaging Details : Professional carton box package

Output power : 20dBm/100mw

Modulation : Cofdm

RF interface : MMCX

Modulation mode : QAM4,QAM16,QAM64

Bandwidth : 4MHZ/8MHz

Weight : 58g

Contact Now

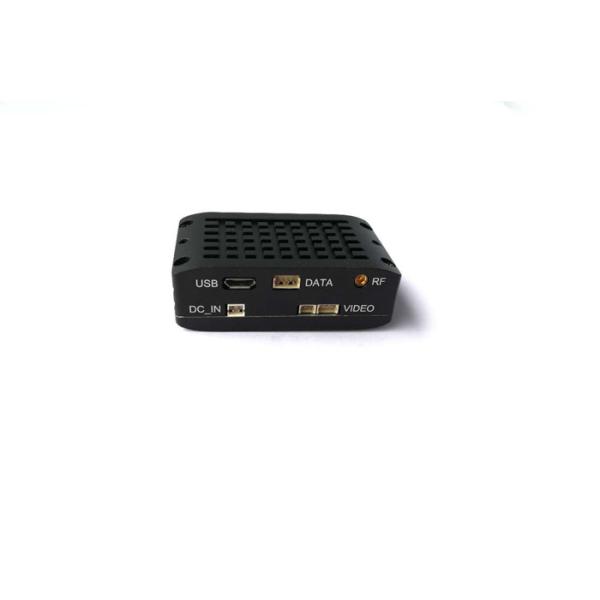

Mini size cofdm video trasmitter lightweight small UAV video transmitter

Product description:

HN-510 Micro COFDM Transmitter: This product is our company's latest micro wireless video transmission equipment,using advanced video pre-processing technologies and efficient video coding algorithms, the device have refined on the improve of coding efficiency,reduced coding delay,algorithm optimization,anti-error rate and improve the quality of video, it can be used the lowest rate to achieve the best image compression.

Product features:

● low latency, low power consumption

● Support NLOS( Non Line of Sight) , High-speed movement transmission

● Highly integrated modular design

● Small size,Light weight,Easy to carry,using air-cooling fin aluminum shell

● Digital panel display, simple interface, easy to operation

Technical parameters:

Model	HN-510
Voltage	DC12V
Power consumption	5W
Video input	CVBS
output frequency	300MHz/2500MHz (other frequency on request)
Bandwidth	4MHZ/8MHz
output power	20dBm/100mw
Modulation	COFDM
Modulation mode	QAM4,QAM16,QAM64
RF interface	MMCX
FEC	1/2,2/3,3/4,5/6,7/8
Carries	2K
Guard Interval	1/32,1/16,1/8,1/4
Video processing method	MPEG-2
Parameter control mode	Through the control panel to set the relevant parameters(or external serial port)
Operating temperature	-20℃～75℃
Dimensions	60m36mm19mm
weight	58g
